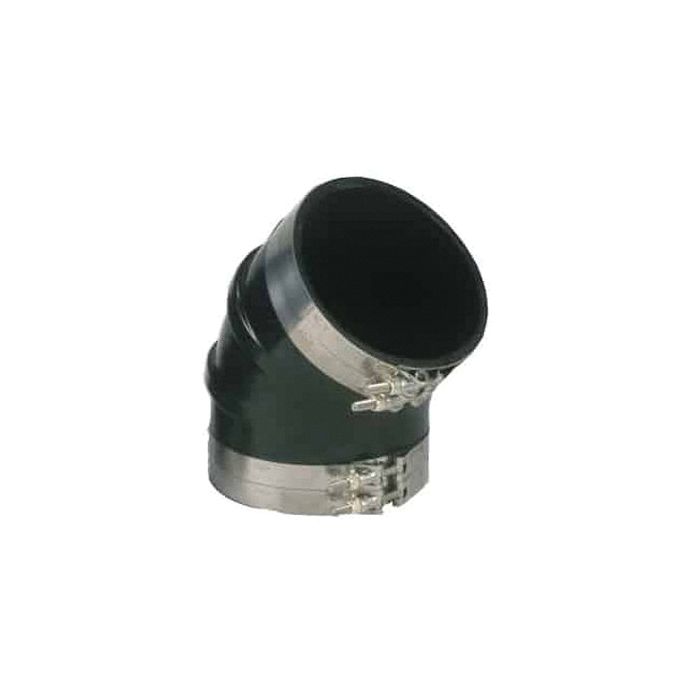

Wet Exhaust 45° Elbow, Molded HT EPDM 250°F, 5.00 Inch ID, Inch Clampable OD

Ask A Question

Description & Features

Designed for marine wet exhaust systems, the Wet Exhaust 45° Elbow, Molded HT EPDM 250°F, 5.00 Inch ID, Inch Clampable OD from Trident Marine Systems provides a flexible, angled connection rated for continuous service up to 250°F. The molded HT EPDM rubber construction handles heat, vibration, and misalignment tolerances common in marine engine exhaust routing, while the smooth interior surface minimizes back pressure.

With a 5.00-inch ID and a minimum clampable length of 1.62 inches, this elbow is suitable for wet exhaust applications only, not dry exhaust or pressurized coolant systems. Stainless steel clamps are included. Installation requires a minimum of two stainless steel clamps at each end, with T-bolt or constant torque clamp styles recommended. Trident Marine Systems backs this product with a 5-year warranty. The alternate catalog number C1FV25 may also be used to cross-reference this part.

SKU: TRL545SS

Supplier Part Number (MPN): TRL-545-S/S

Alternate Part Numbers: C1FV25

Specifications

Brand
TRIDENT MARINE SYSTEMS
Cover Material
EPDM
Hose Color
Black
Nominal Size
#5
Resistance Properties
Ozone, Salt Water, Diesel Fumes and Splash, Cold, Heat
Series
TRL Series
Sg Installation
Do not Damage or Kink, Install Far Enough Downstream from the Point of Wet Exhaust System Water Injection So That the Maximum Continuous Operating Temperature at It's Location Does not Exceed That of the Component, Install over Rigid Tubing or Pipe with R
Sg Operation
In Case of Backfire, Visually Inspect the Entire Wet Exhaust System for Damage, Leaks or Separated Connections
Tube Material
EDPM/Silicone

Similar Products

Model Number Hose I.D. Angle Construction Clampable O.D. Minimum Clampable Length Includes Temp. Rating Price Action
Wet Exhaust 90° Elbow, Molded VHT Blue Silicone 350°F, 3.00 Inch ID, Inch Clampable OD

290V3000SS Wet Exhaust Elbow

3

90°

Molded VHT Blue Silicone 350°F

1.5

Clamps

350

Wet Exhaust 90° Elbow, Molded HT EPDM 250°F, 2.00 Inch ID, Inch Clampable OD

TRL290SS Wet Exhaust Elbow

2

90°

Molded HT EPDM 250°F

1.75

Clamps

250

Wet Exhaust 45° Elbow, Molded HT EPDM 250°F, 3.00 Inch ID, Inch Clampable OD

TRL345SS Wet Exhaust Elbow

3

45°

Molded HT EPDM 250°F

1.5

Clamps

250

Wet Exhaust 90° Elbow, Molded HT EPDM 250°F, 3.50 Inch ID, Inch Clampable OD

TRL3590SS Wet Exhaust Elbow

3.5

90°

Molded HT EPDM 250°F

1.5

Clamps

250

Wet Exhaust 90° Elbow, Molded HT EPDM 250°F, 3.00 Inch ID, Inch Clampable OD

TRL390SS Wet Exhaust Elbow

3

90°

Molded HT EPDM 250°F

1.5

Clamps

250

Wet Exhaust 90° Elbow, Molded HT EPDM 250°F, 4.00 Inch ID, Inch Clampable OD

TRL490SS Wet Exhaust Elbow

4

90°

Molded HT EPDM 250°F

1.5

Clamps

250

Product Questions & Answers (2)

Question by: Tony M on Oct 15, 2025, 3:01 PM
clamps included with this, or do I need to order them separate?
Answer by: Customer Support on Oct 17, 2025, 1:47 PM
Stainless steel clamps come with it. That said, the installation specs call for a minimum of two clamps at each end, and the recommended styles are 3/4 inch wide T-bolt clamps or 5/8 inch wide constant torque clamps. If you need extras beyond what's included, you'd want to pick those up separately.
Question by: Troy K on Jan 19, 2026, 8:41 PM
got a 5 inch wet exhaust run and need to kick it over 45 degrees. is this elbow actually 5.00" ID, and how much straight length do i get for the clamps?
Answer by: Customer Support on Jan 21, 2026, 6:21 AM
It is a 5.00 inch inside diameter elbow with a minimum clampable length of 1.62 inches. Plan on using at least two stainless steel clamps on each end, and the recommended styles are T-bolt or constant torque clamps.
