Wet Exhaust Elbows

Description & Features

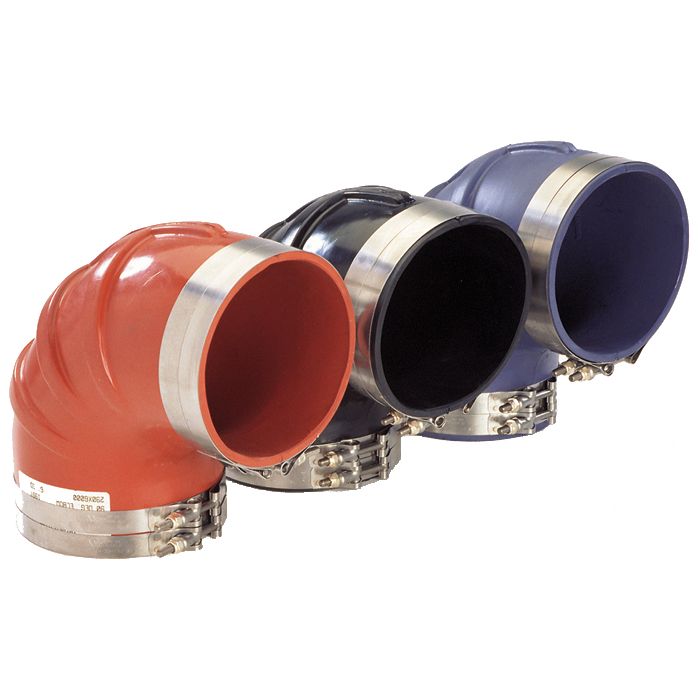

Application & Construction	EPDM Rubber & silicone rubber Elbows provide the ultimate flexible angled connectors for marine wet exhaust systems. They offer increased tolerance to heat, misalignment, movement and vibration, while reducing installed cost, back pressure and noise.
Note	Molded models (see table below) are for wet exhaust systems only. Reinforced models may be used in both wet exhaust and engine coolant systems up to the rated working pressure of the component.

Products

Model Number	Hose I.D.	Angle	Construction	Minimum Clampable Length	Includes	Temp. Rating
290V3000SS Wet Exhaust Elbow	3	90°	Molded VHT Blue Silicone 350°F	1.5	Clamps	350
TRL290SS Wet Exhaust Elbow	2	90°	Molded HT EPDM 250°F	1.75	Clamps	250
TRL345SS Wet Exhaust Elbow	3	45°	Molded HT EPDM 250°F	1.5	Clamps	250
TRL3590SS Wet Exhaust Elbow	3.5	90°	Molded HT EPDM 250°F	1.5	Clamps	250
TRL390SS Wet Exhaust Elbow	3	90°	Molded HT EPDM 250°F	1.5	Clamps	250
TRL490SS Wet Exhaust Elbow	4	90°	Molded HT EPDM 250°F	1.5	Clamps	250
TRL545SS Wet Exhaust Elbow	5	45°	Molded HT EPDM 250°F	1.62	Clamps	250

Product Questions & Answers (1)

Question by: Rod C on Dec 26, 2025, 10:05 AM

Reckon these'll hold up okay in a cramped engine compartment where things get hotter than blazes?

Answer by: Customer Support on Dec 27, 2025, 7:46 PM

The silicone elbows are rated up to 500°F (red) or 350°F (blue), while the EPDM rubber elbows can handle up to 250°F continuously. Make sure you pick the right one for your engine's temperature range.
