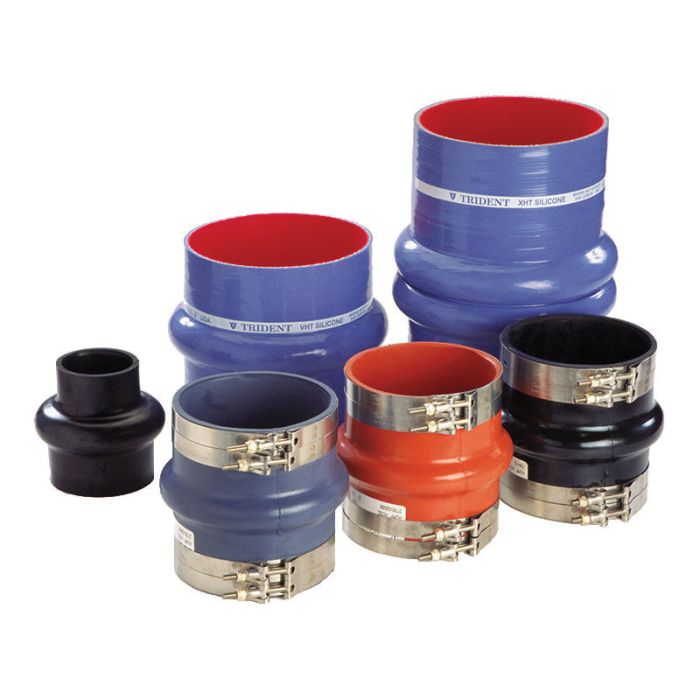

Wet Exhaust Hump Hose Bellows, Molded HT EPDM 250°F, 3.00 Inch ID, Single Hump, 5.25 Inch Long

Description & Features

This Trident Marine Systems wet exhaust hump hose bellows is designed for marine wet exhaust systems. Constructed from molded HT EPDM, it offers a high-temperature rating up to 250°F. The 3.00-inch ID bellows features a single hump design to accommodate misalignment, movement, and vibration while reducing back pressure and noise.

With a 5.25-inch length and a 4.5-inch hump OD, this wet exhaust hump hose bellows provides excellent flexibility for easier installations. Included clamps ensure secure connections.

SKU: THH3SS

Supplier Part Number (MPN): THH-3-S/S

Alternate Part Numbers: C1FV11

Specifications

Brand TRIDENT MARINE SYSTEMS	Construction Molded HT EPDM 250 deg F	Cover Material Silicone	grp Application Construction EPDM Rubber and Silicone Rubber Hump Hose Bellows Provide the Ultimate Flexible Straight Connectors for Marine Wet Exhaust Systems, They Offer Increased Tolerance to Heat, Misalignment, Movement and Vibration, While Reducing Installed Cost, Back Pressure	Hose Color Black	Humps Single	Inside Diameter 3 in	Nominal Size #03	Sg Red Xht Xtra Hi Temp Silicone Rubber, 500 deg F Maximum Continuous, 10 Year Warranty	Tube Material Silicone

Similar Products

Model Number	Hose I.D.	Construction	Humps	Length	Hump O.D.	Clampable O.D.	Minimum Clampable Length	Includes	Temp. Rating	Price	Action
272V3000SS Wet Exhaust Hump Hose Bellow	3	Reinforced VHT Blue Silicone 350°F	Single	6.00				Clamps	350
272V4000SS Wet Exhaust Hump Hose Bellow	4	Reinforced VHT Blue Silicone 350°F	Single	6.00				Clamps	350

Product Questions & Answers (3)

Question by: Wayne G on Jan 19, 2026, 2:54 PM

got a 3 inch wet exhaust run and the pipe dont line up perfect. is this single hump bellow meant to take up that kind of misalignment and vibration

Answer by: Customer Support on Jan 20, 2026, 6:06 PM

Built for wet exhaust systems, the single hump section is there to absorb misalignment, movement, and vibration. It also helps cut down back pressure and noise compared to a rigid straight connection.

Question by: Warren C on Feb 18, 2026, 6:58 PM

How much wiggle room does this hose give me if my exhaust isn't perfectly lined up?

Answer by: Customer Support on Feb 19, 2026, 9:00 PM

It's designed with a single hump that allows for some misalignment, movement, and vibration in your wet exhaust system. The hump is 4.5 inches in outer diameter, which should provide a good bit of flexibility.

Question by: Rod S on Aug 17, 2025, 3:21 PM

clamps come with this or do I need to order them separate?

Answer by: Customer Support on Aug 18, 2025, 8:50 PM

Clamps are included with the hose, so you won't need to track those down separately. That said, the installation notes call for a minimum of two stainless steel clamps at each end, at least half an inch wide. The included clamps should cover your basic needs, but if you're going with T-bolt or constant torque clamps for a more secure setup, those are worth picking up on their own. Just make sure whatever you use meets that half-inch minimum width requirement.
