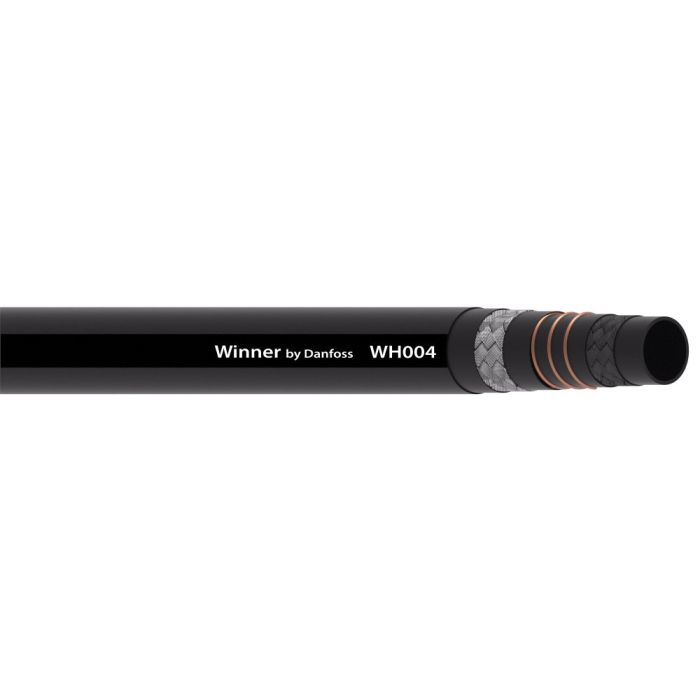

Danfoss / Eaton Winner 100R4 Hose

Description & Features

Winner by Danfoss / Eaton WH004 Series Rubber Hydraulic Braided Hose is crafted for maximum durability under harsh conditions. The 2-ply braided construction of this hose ensures it can withstand the highest pressures making it robust and reliable.

Suitable for use in suction applications for hydraulics crude fuel lubricating oils gasoline air water and chemical transfer it meets SAE 100R4 standards. The synthetic rubber cover and tube material enhance its abrasion resistance and overall durability.

The Danfoss / Eaton Winner 100R4 Hose provides an impulse cycle life of 50 000 cycles ensuring longevity and dependability. This hose has a minimum bend radius of 1.77 and operates efficiently within a temperature range of -40 to 100 degrees Celsius.

Supplier Part Number: WH004-16

Specifications

Abrasion Resistance 29	Alternate Part Numbers Alternate Part Number TK-WH004-16	Application Suitable for use in suction applications for hydraulics, crude fuel, lubricating oils, gasoline, air, water and chemical transfer	Certifications SAE 100R4	Color Black	Compliances MSHA Approved	Conductivity 30	Construction 2-ply braid	Cover Material Synthetic Rubber	Dash Size -16	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 12.00	UOM FT	Features Maximum durability under harsh operating conditions\|Robust construction able to withstand highest pressures\|System engineered to extend hose assembly life	ICC Hoses and Flexible Tubes	Impulse Cycle Life 50000 cycle	Language English	Lay Line Style Ink Transfer	Minimum Bend Radius 1.77	Minimum Bend Radius 1.77	Minimum Working Temperature -40	Product Width 1.43	Qualified Hose Fittings TTC, 4T, Z	Reinforcement Material Synthetic fiber	Sub Brand Winner	Supplier Part Number WH004-16	Tube Material Synthetic Rubber	Product Weight 0.37 lbs

Product Questions & Answers (2)

Question by: Travis M on Jun 8, 2025, 11:14 AM

what all can this hose handle fluid-wise? got a mixed-use setup running hydraulics and fuel lines off the same skid

Answer by: Customer Support on Jun 10, 2025, 10:30 AM

Pretty broad compatibility on this one. It's rated for hydraulic fluid, crude fuel, lubricating oils, gasoline, air, water, and general chemical transfer. The synthetic rubber tube and cover hold up well across those media, and it meets SAE 100R4, so it's built with suction line duty in mind. The 2-ply braided reinforcement keeps it from collapsing under suction conditions, which matters a lot in mixed-use setups like what you're describing.

Question by: Marvin R on Mar 17, 2026, 10:27 AM

Will this hose hold up for transferring hydraulic fluid in a system that sees pretty consistent use?

Answer by: Customer Support on Mar 19, 2026, 8:31 AM

For hydraulic applications, this hose is constructed with a 2-ply braid to withstand high pressures and provide robust, reliable performance. Its synthetic rubber cover also enhances abrasion resistance, contributing to its overall durability in demanding conditions.
