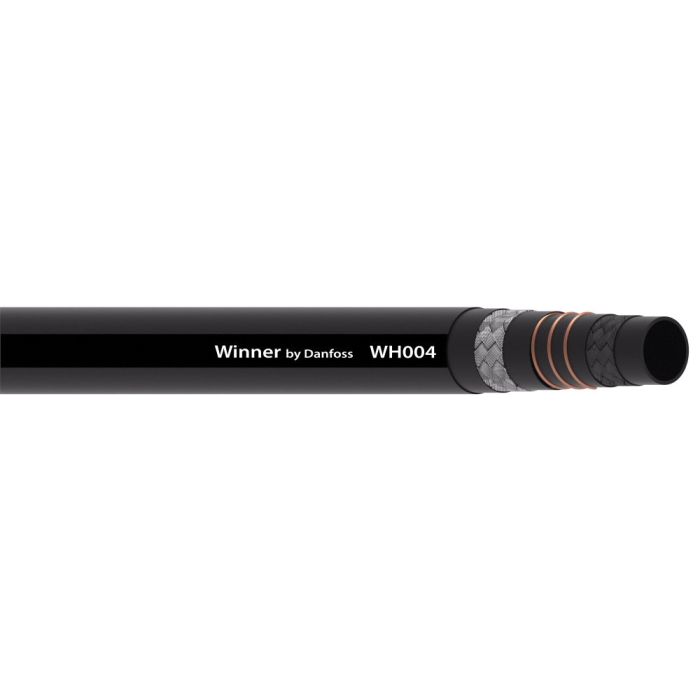

Danfoss / Eaton Winner 100R4 Hose

Description & Features

The Danfoss / Eaton Winner 100R4 Hose known as WH004-24 is designed to offer maximum durability in demanding conditions. This hydraulic braided hose features robust construction ensuring it withstands the highest pressures.

Constructed with a 2-ply braid and synthetic rubber the WH004-24 provides excellent abrasion resistance and conductivity. Suitable for various applications including hydraulics crude fuel lubricating oils gasoline air water and chemical transfer this hose is versatile and reliable.

Certified to meet SAE 100R4 standards the WH004-24 is also MSHA Approved. It boasts a minimum bend radius of 2.56 inches and an impulse cycle life of 50 000 cycles making it a durable solution engineered to extend hose assembly life.

Equipped with a synthetic rubber cover and polyester reinforcement this black hose offers additional strength and longevity. The WH004-24 is compatible with TTC 4T and Z qualified hose fittings ensuring a secure and dependable connection.

Supplier Part Number: WH004-24

Specifications

Abrasion Resistance 29	Alternate Part Numbers Alternate Part Number MINO-00015X16144, Alternate Part Number TK-WH004-24	Application Suitable for use in suction applications for hydraulics, crude fuel, lubricating oils, gasoline, air, water and chemical transfer	Certifications SAE 100R4	Color Black	Compliances MSHA Approved	Conductivity 30	Construction 2-ply braid	Cover Material Synthetic Rubber	Dash Size -24	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 12.00	UOM FT	Features Maximum durability under harsh operating conditions\|Robust construction able to withstand highest pressures\|System engineered to extend hose assembly life	ICC Hoses and Flexible Tubes	Impulse Cycle Life 50000 cycle	Language English	Lay Line Style Ink Transfer	Minimum Bend Radius 2.56	Minimum Bend Radius 2.56	Minimum Working Temperature -40	Product Width 1.98	Qualified Hose Fittings TTC, 4T, Z	Reinforcement Material Synthetic fiber	Sub Brand Winner	Supplier Part Number WH004-24	Tube Material Synthetic Rubber	Product Weight 0.51 lbs

Product Questions & Answers (2)

Question by: Steve W on Nov 7, 2025, 1:27 PM

got a suction line on a hydraulic tank, is this WH004-24 hose meant for that kind of job?

Answer by: Customer Support on Nov 9, 2025, 6:55 AM

For suction service, the WH004-24 is called out as suitable for use in suction applications, including hydraulics along with fluids like crude fuel, lubricating oils, gasoline, air, water, and chemical transfer.

Question by: Howard A on Jul 22, 2025, 3:56 PM

Does this hose hold up in suction line setups, or is it more of a pressure-side deal?

Answer by: Customer Support on Jul 24, 2025, 11:25 AM

Suction applications are actually one of the main uses it's built for. The 2-ply braid construction and synthetic rubber tube handle both suction and pressure-side service, and the SAE 100R4 rating confirms it's suited for that kind of work. It's also rated for hydraulics, fuel, lubricating oils, gasoline, air, water, and chemical transfer, so it covers a pretty wide range of fluid types beyond just hydraulic oil.
