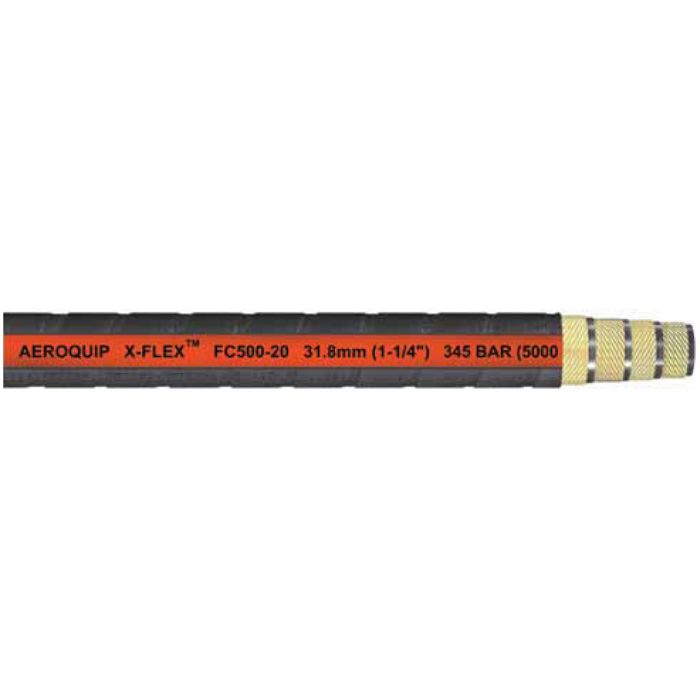

X-FLEX SAE 100R13 High Pressure Hose
Description & Features
| Application | High pressure hydraulic system service with petroleum and water-base fluids for low temperature applications. |
| Construction | Synthetic rubber inner tube, 4-heavy spiral wire reinforcement (sizes -12 to -24), 6-heavy wire spiral reinforcement (size -32) and our DURA-TUFF™ rubber cover. |
| Temperature Range | -40°F to 260°F |
Products
| Model Number | Hose I.D. | Hose O.D. | Maximum Operating Pressure | Burst Pressure | Minimum Bend Radius | Price | Action |
|---|---|---|---|---|---|---|---|
FC500-20 X-FLEX High Pressure Hose |
1.25 |
1.85 |
5076 |
|
8.25 |
|
|
FC500-24 X-FLEX High Pressure Hose |
1.5 |
2.17 |
5076 |
|
10 |
|
|
FC500-32 X-FLEX High Pressure Hose |
2 |
2.86 |
5076 |
|
18.75 |
|
|
FC500-12 X-FLEX High Pressure Hose |
0.75 |
1.26 |
5076 |
|
4.75 |
|
|
FC500-16 X-FLEX High Pressure Hose |
1 |
1.54 |
5076 |
|
6 |
|
