Optimize your hydraulic systems with our comprehensive selection of industrial-grade components. Our Malleable Iron Pipe Fittings ensure durability and reliability in demanding environments. Products like the 4 x 2 Inch Hex Bushing and the 1-1/4 Inch Square Head Plug meet stringent industry standards, providing robust solutions for your hydraulic applications.
Explore our range of Schedule 40 and Schedule 80 Steel Pipe Nipples, available in various sizes and specifications. The 1-1/2-11-1/2 Male NPT, 2.00 Inch Long and the 1/2-14 Male NPT, 2.50 Inch Long models are engineered for high performance and precision.
For enhanced system integration, the Brass Pipe Nipples, such as the 1/2-14 Male NPT, 1.13 Inch Long and the 1/4-18 Male NPT, 3.00 Inch Long, provide excellent corrosion resistance and longevity.

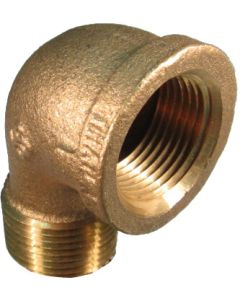

Our collection includes essential components like the Malleable Iron Pipe Fitting 1 Inch 90 deg Elbow and the 2 Inch 90 deg Elbow, ensuring seamless connections in complex hydraulic setups.
Browse our category to find the right products tailored to your industrial hydraulic needs.
HSC stocks brass and malleable iron pipe fittings, steel pipe nipples, Flexmaster joints, and SAE weld couplings for hydraulic and industrial fluid system installations. Our specialists help you select the right fitting material and pressure schedule for any application.
Huge In-Stock Inventory Same-Day Shipping Top Industry Brands
Match fitting material, pipe schedule, and weld-coupling style to the fluid, working pressure, and installation context for a leak-resistant assembly.
Match Pipe Fitting Material to the Fluid and System PressureBrass NPT fittings are the standard for hydraulic port connections, pneumatic systems, and low-to-medium-pressure fluid circuits — compatible with mineral oil, water, and compressed air, and available in the thread sizes most commonly encountered on hydraulic and pneumatic components. Malleable iron is used in larger compressed air distribution systems where pipe sizes exceed practical brass availability and the higher structural strength of iron is beneficial. For high-pressure hydraulic circuits, pipe thread connections should be limited to lower-pressure ports — ORFS or JIC fittings on tube or hose assemblies are the preferred standard for main circuit connections above moderate pressures.
Select Pipe Schedule Based on Working PressureSchedule 40 and Schedule 80 differ in wall thickness at the same nominal pipe size — Schedule 80 has a thicker wall and higher pressure rating. For most compressed air distribution at standard shop pressures (125–175 PSI), Schedule 40 steel is adequate. For higher-pressure circuits or where additional mechanical strength is required for installation protection, Schedule 80 is the correct choice. Verify that nipple thread engagement depth is adequate for the fitting — short nipples in thick-walled (Schedule 80) fittings may not reach full thread engagement.
Use Weld Couplings for Any Threaded Port in a Fabricated Steel AssemblyWhen a hydraulic reservoir, manifold plate, or fabricated steel component requires a threaded port, a weld coupling is the correct solution — not a drilled-and-tapped thread in the base material. SAE weld half-couplings and socket weld full-couplings provide a full-strength threaded port with a seal face matched to the SAE straight-thread or NPT standard, welded into the base material for a permanent, leak-resistant connection. Tapping threads directly into thin plate or cast surfaces that were not designed for threaded ports creates leak paths that worsen over time.
Hydraulic failures never happen at a good time. One moment, your system is running smoothly — the next, it’s leaking fluid, overheating, or grinding to a halt. Downtime doesn’t just stall productivity;…
Hydraulic motors are critical components in fluid power systems, converting hydraulic energy into mechanical energy to drive equipment. Whether it's powering a conveyor in a factory, rotating an auger…
Choosing the Right Hydraulic Pump for Maximum Performance
Hydraulic pumps play a vital role in hydraulic systems by converting mechanical energy into hydraulic power. They are responsible for moving fluid…
HSC works with industries that depend on reliable hydraulic and pneumatic systems, providing access to in-stock components, service capabilities, and knowledgeable support across diverse applications.
Threaded pipe fittings and nipples are the universal connection hardware in compressed air distribution, hydraulic panel plumbing, and industrial fluid system construction. In manufacturing plants, malleable iron NPT fittings build the compressed air drops that reach every workstation. In welding and fabrication shops, SAE weld couplings provide threaded ports in custom-built hydraulic manifolds and reservoirs. HSC stocks brass and iron pipe fittings, steel nipples, Flexmaster joints, and weld couplings for any piping application.
Piping Product Components Matter
A pipe fitting that fails under pressure — from inadequate thread engagement, substandard material, or an improperly made weld coupling — creates a leak at operating pressure. Malleable iron and forged brass fittings from recognized manufacturers are rated to standard pressure classes that match Schedule 40 and Schedule 80 pipe. HSC stocks brass and iron pipe fittings, nipples, Flexmaster joints, and weld couplings from Midland Industries and Anchor Fluid Power with same-day availability.
Frequently Asked Questions
What is the difference between Schedule 40 and Schedule 80 pipe nipples?
Schedule 40 and Schedule 80 refer to the wall thickness of the pipe at a given nominal pipe size. Schedule 80 has a thicker wall, a smaller inside diameter, and a higher pressure rating than Schedule 40 at the same nominal size. For most shop compressed air systems at standard working pressures (125–175 PSI), Schedule 40 is adequate. Schedule 80 is specified for higher-pressure applications, where additional mechanical protection is needed, or where the system pressure or code requires the heavier wall.
When should I use brass pipe fittings versus malleable iron?
Brass NPT fittings are the standard choice for hydraulic port connections, pneumatic systems, and compressed air outlets in shop and industrial environments. Brass is compatible with mineral oil, water, and compressed air; it machines and threads well; and it resists corrosion in most environments. Malleable iron fittings are used in larger compressed air distribution mains — typically 1″ NPT and above — where pipe sizes, structural strength, and cost favor iron over brass. Do not use malleable iron fittings in contact with hydraulic fluid unless confirmed compatible with the fluid type.
What is a weld coupling and when do I need one?
A weld coupling is a steel fitting designed to be welded into a hydraulic reservoir, manifold plate, or fabricated steel assembly to create a threaded port. SAE weld half-couplings and socket weld full-couplings provide a precision-machined threaded port face and thread form — either SAE straight thread or NPT — in a fitting that is welded in place before threading the port connection. They are required wherever a threaded hydraulic port is needed in a fabricated steel component, as drilling and tapping the base material directly does not provide adequate thread depth, sealing surface quality, or structural integrity for hydraulic pressure service.

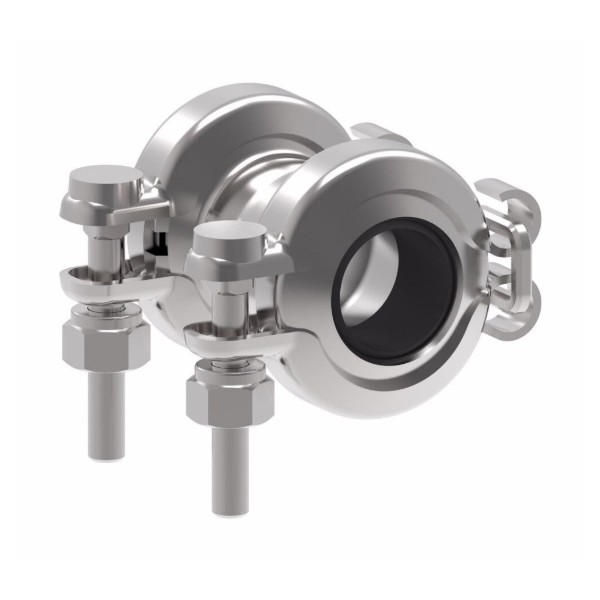

How do Flexmaster pipe and tube joints work?
Flexmaster joints are mechanical couplings that clamp onto the OD of two pipe or tube ends, sealing them together without threading or welding. A central sleeve with internal rubber seals clamps over the pipe ends, and band clamps at each end compress the sleeve against the pipe surface to create a leak-resistant seal. Flexmaster joints accommodate minor angular and axial misalignment, absorb vibration, and allow the joint to be broken and remade — useful for connecting misaligned pipe sections, replacing damaged sections in existing runs, or making joints in locations where welding is impractical.
Does HSC stock pipe fittings and nipples for same-day pickup or shipping?
HSC stocks brass and malleable iron pipe fittings, Schedule 40 and Schedule 80 steel nipples, Flexmaster pipe joints, and SAE weld couplings across standard NPT sizes at branch locations throughout the Southeast. Same-day shipping is available on orders placed before 2pm EST, and with 40+ locations, there is likely an HSC branch near you with the piping products you need already on the shelf.
