How to Choose the Right Pneumatic Component

Establish your air supply quality and pressure first, match component type to the circuit function second, then size for flow capacity and cycle rate before specifying the final component.

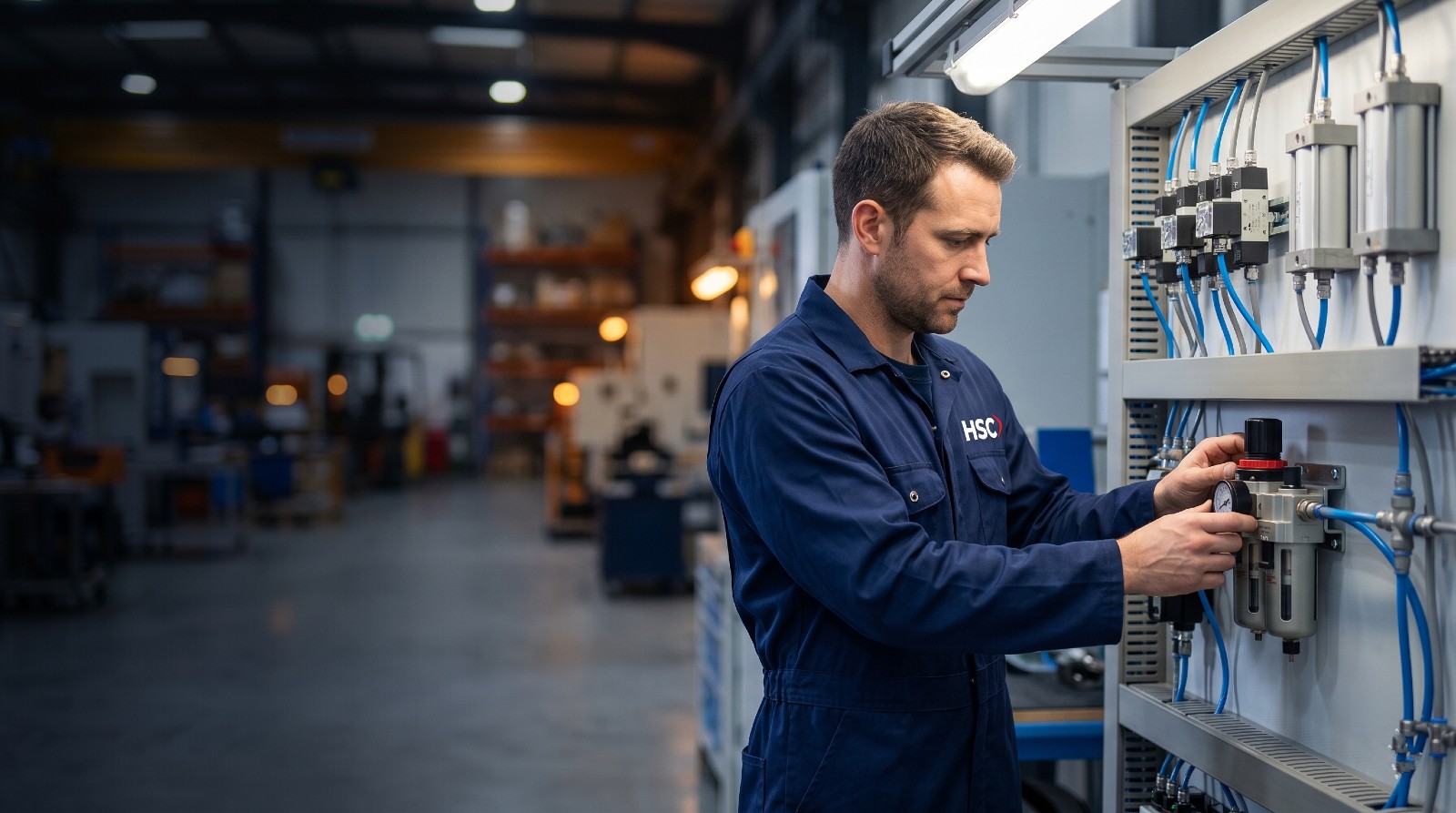

• Establish Air Supply Quality and Pressure Every pneumatic component — valve, cylinder, FRL, or tool — has a minimum and maximum operating pressure range. Verify your compressor’s regulated output pressure and confirm it falls within the acceptable range for the components you’re selecting. Beyond pressure, compressed air quality matters: moisture, oil carryover, and particulate from the compressor or distribution piping will accelerate wear in downstream components without proper filtration. Install filtration at the system entry point and at the branch supplying critical equipment.

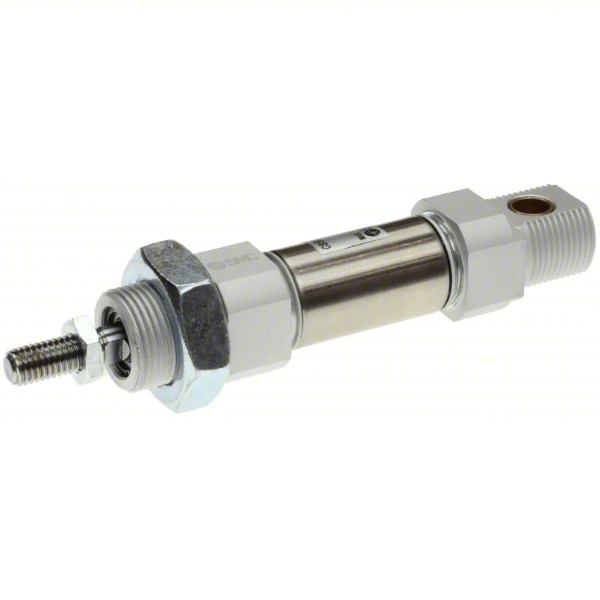

• Match Component Type to Circuit Function Pneumatic components serve distinct roles. FRLs condition the air supply. Cylinders convert pressure to linear force. Valves direct and control airflow to cylinders. Speed controls regulate cylinder velocity. Safety valves protect the system from overpressure. Select for function first — then confirm flow capacity and pressure compatibility. Mixing component roles (such as using a 2-way valve where a 4-way valve is required for a double-acting cylinder) is one of the most common and frustrating pneumatic installation errors.
• Size for Flow Capacity (SCFM) and Cycle Rate Each pneumatic component has a rated flow capacity in SCFM (standard cubic feet per minute). A valve, FRL, or filter undersized for the required flow creates excessive pressure drop across the component — reducing actuator force and speed, and potentially stalling the system under demand. Calculate the SCFM required by your actuators at operating speed, add a margin for simultaneous operation, and size every component in the air supply path — including fittings and hose — to meet that flow requirement.
