Hydraulic Quick Disconnects

How to Choose the Right Quick Disconnect

Match coupler series to the fluid, verify interchange compatibility, and size the body to the flow requirement so the coupler is not a bottleneck or a failure point.

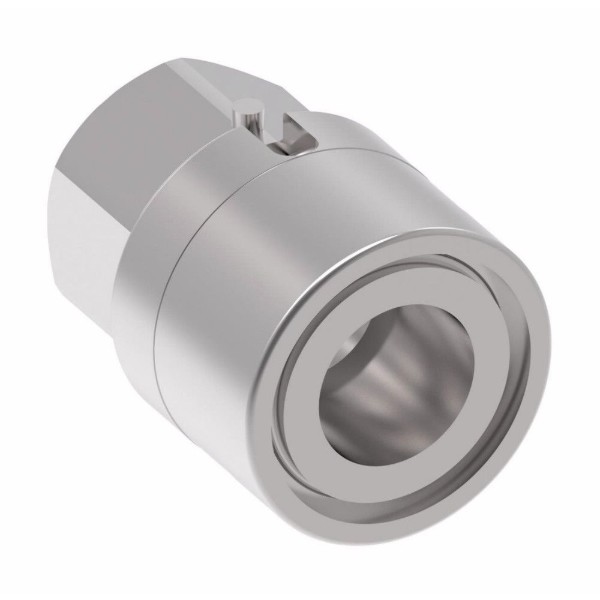

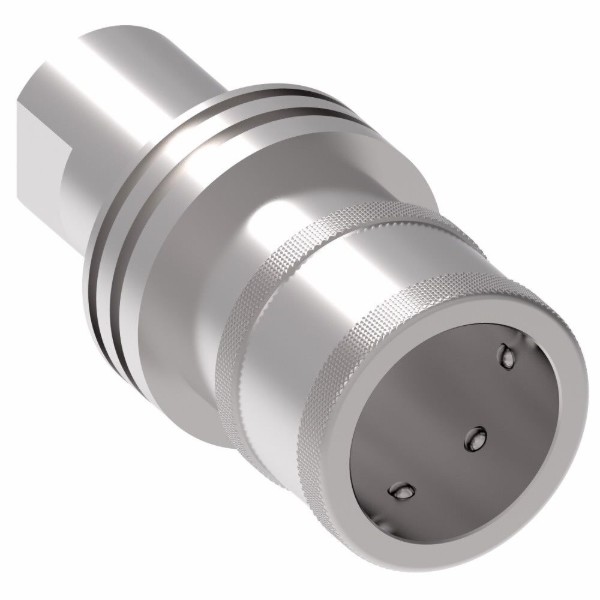

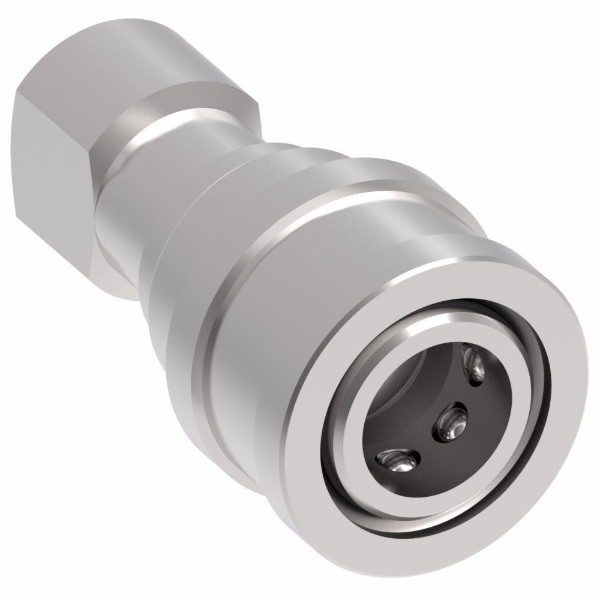

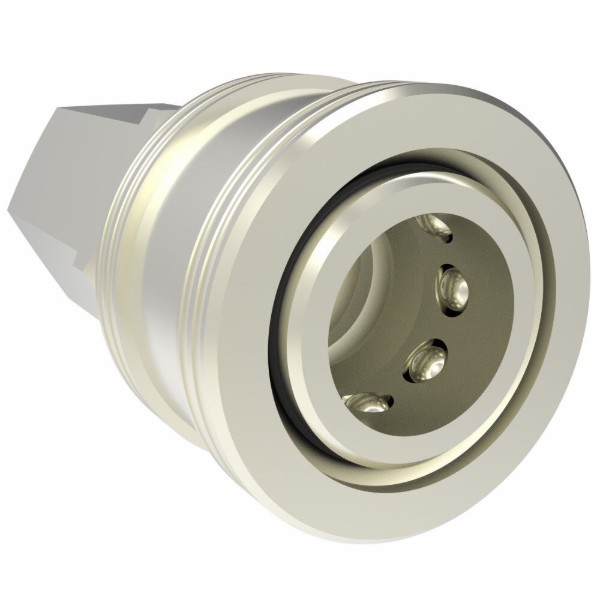

• Match the Coupler Series to the Application’s Fluid and Pressure Quick disconnect coupler series are not interchangeable between applications. Air interchange couplers are designed for compressed air at shop pressures — they are not rated for hydraulic fluid under hydraulic working pressures. Hydraulic quick disconnects are rated for fluid pressure, typically between 2,500 and 5,000 PSI depending on the series and size, and use seal materials compatible with hydraulic oils rather than compressed air lubrication. Agricultural farm couplers are designed specifically for the tractor-to-implement connection — with connect-under-pressure capability and the seal geometry of the ISO 7241 standard used across tractor manufacturers. Using an air coupler in a hydraulic circuit or an agricultural coupler in an industrial hydraulic system creates a mismatch between seal materials, pressure ratings, and locking mechanisms.
• Confirm Interchange Compatibility Before Mixing Brands Industrial interchange air couplers and hydraulic interchange couplers are manufactured to published interchange standards — meaning a plug from one manufacturer will engage a body from another if both are made to the same interchange series. However, not all couplers marketed as “interchange” are truly interchangeable across all manufacturers. Verify that the interchange series designation (MIL-C-4109, industrial interchange, ISO 7241 Series A or B) matches between the plug and body before committing to a mixed installation. A mismatched coupler that appears to engage but does not lock fully will release under pressure.
• Select Port Size and Style to Match the Circuit Flow Requirement Quick disconnect couplers create a restriction in the fluid circuit — the coupler’s internal bore and poppet valve geometry limit flow capacity. For compressed air tool connections, an undersized coupler body (common in 1/4″ body couplers) starves tools requiring higher SCFM, reducing tool performance at the point of connection. For hydraulic circuits, coupler pressure drop under flow reduces actuator force and speed. Select the coupler body size whose rated flow capacity meets or exceeds the circuit’s SCFM or GPM requirement at operating pressure, and match the port thread size to the hose fitting or component port at the connection point.
