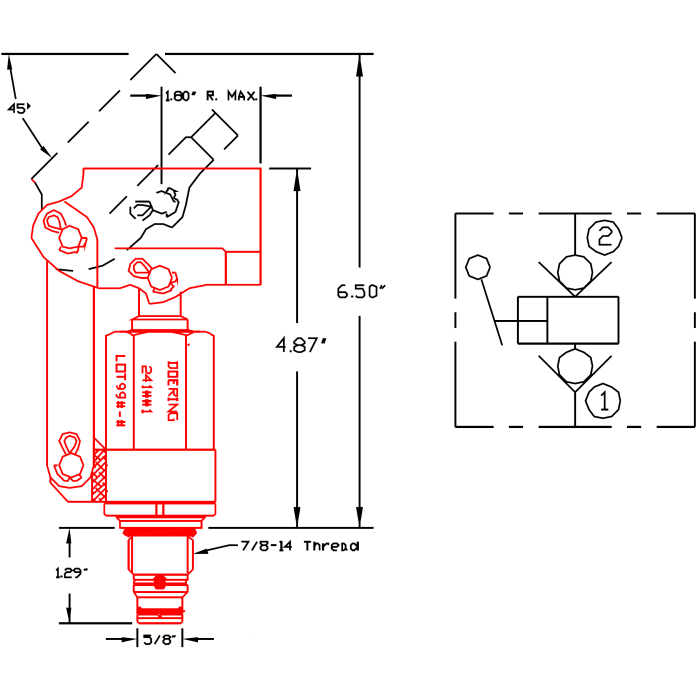

Series 241 Cartridge Hand Pumps
Description & Features
| Housing | C-10-2. |
| Installation | Lubricate seals, using 1-1/4 wrench torque to approximately 50 foot pounds. Socket may be rotated 360° for handle positioning. |
| Performance and Operation | Maximum Operating Pressure: 5000 psi; Maximum Handle Torque: 80 ft.-lbs.; Displacement: 0.601 cu. in. per stroke. |
Products
| Model Number | Product Description | Price | Action |
|---|---|---|---|
241871-S Series 241 Cartridge Hand Pump |
DOERING HAND PUMP SS CARTRIDGE NI PLATE. |
|
Product Questions & Answers (1)
Question by: Harold W on Sep 11, 2025, 3:50 PM
Hey, can you rotate that socket all the way around on these things? Need to get it just right.
Answer by: Customer Support on Sep 12, 2025, 6:43 PM
the socket on the Series 241 can be rotated a full 360 degrees to get your handle positioned just where you need it.
