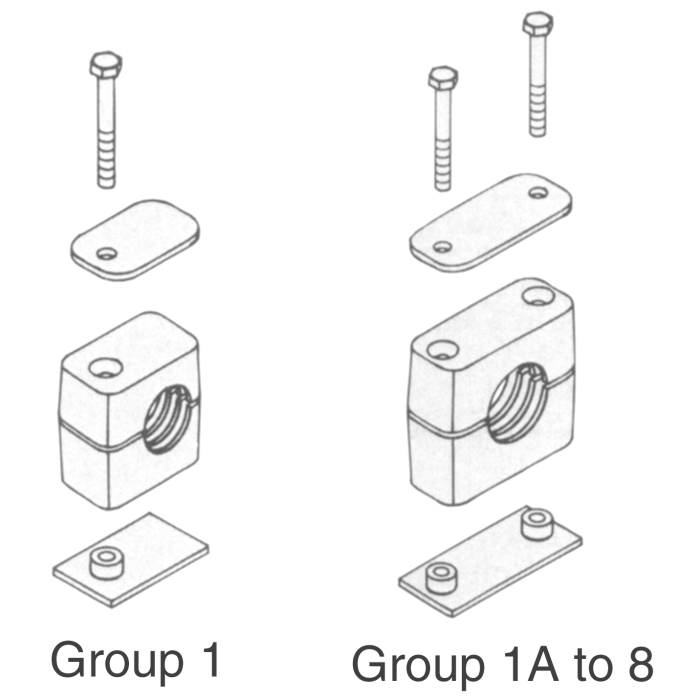

Standard Series Pipe & Tubing Support Clamp, Single Weld Plate, Hex Head Bolts With Cover Plate

Description & Features

Model Number	Size	Tube Size	Pipe Size	Hose O.D.	Group	Materials	Body I.D.	Package Qty.	B2	H1	H3
SP5370PPHDPAS-K Standard Series Support Clamp	37.0 mm			1.46	5	Polypropylene	Smooth	1	1.18	2.28	1.25
SP6445PPHDPAS-K Standard Series Support Clamp	44.5 mm		1.75	1.75	6	Polypropylene	Smooth	1	1.18	2.59	1.42
6100081755 Standard Series Support Clamp	6.4 mm		0.25		1	Polypropylene	Profiled	1	1.18	1.06	0.65
6100081795 Standard Series Support Clamp	9.5 mm	0.25			1	Polypropylene	Profiled	1	1.18	1.06	0.65
STNA11119 Standard Series Support Clamp	16 mm	0.625			2	Polypropylene	Profiled	1	1.18	1.3	0.77
6100082100 Standard Series Support Clamp	21.3 mm		0.5		3	Polypropylene	Profiled	1	1.18	2.28	0.83
STNA11184 Standard Series Support Clamp	26.9 mm		0.75		4	Polypropylene	Profiled	1	1.18	1.65	0.94
STNA11217 Standard Series Support Clamp	38 mm	1.5			5	Polypropylene	Profiled	1	1.18	2.28	1.26
